Hydraulic Lifting Table

Product: Hydraulic lifting table
Beacon Model: Beacon BHT series hydraulic lifting table.

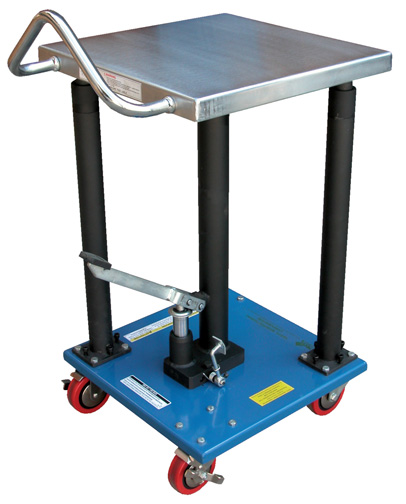

Description: The Beacon hydraulic lifting table is designed for heavy-duty shop uses such as moving machine parts, lifting dies and castings, leveling feed material for pump presses and positioning welders' work. The hydraulic lifting table is available in both light-duty and heavy-duty models. Each light-duty hydraulic table cart features a single-speed foot pump, while each heavy-duty table cart features a two-speed foot pump for convenience. The posts of the hydraulic lift table are telescoping to help stabilize and support loads during operation. The foot pump for each unit includes a down speed control valve for safe platform lowering.
Operation: All models are available with a single or two speed foot pump. The hydraulic table cart BHT-20-2436-DC model and the BHT-20-3036-DC model include a 12 V DC electric motor. Both models also includes a battery and a hand control on an 8' coil cord.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Size: The hydraulic lift table is available in sizes ranging from 16" wide x 16" long to 32" wide x 48" long.
Service Range: The hydraulic table cart has a service range from 31" to 54".
Capacity: The hydraulic table cart is available in a variety of capacities ranging from 200 to 6,000 lbs.
Standard: The 200, 300 and 500 lb. capacity hydraulic lift tables come standard with 4 swivel casters (2 with total-lock brakes). The 1,000 lb. and higher capacity units come standard with 2 rigid and 2 swivel casters with wheel brakes.
Weight: The units are available in a variety of weights ranging from 120 to 594 lbs.
