Die Table - Mobile Work Table - BDIE Series

Beacon® BDIE Series

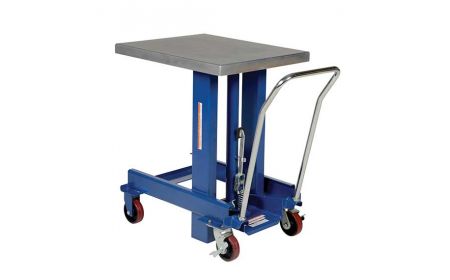

The Die Table - Mobile Work Table is designed to move dies from one location to a work station. By utilizing these units, they will provide safe movement protecting your investment. These units are used for ergonomic positioning to reduce injuries and trauma in the machine stop.
Starting at: $1,437.28

See chart below and click a model number

Product Details

  • Construction: These units are manufactured from heavy duty welded steel construction.
  • Projection: All Die Table units include a small frame size to allow the frame to move close to the workstation edge, allowing access to hard to reach areas.
  • Size: All platform sizes are 24" x 30". Service range varies on different units ranging from 24" lowered height to 60-3/4" raised height.
  • Powered: All units are activated by manual foot pump except the BDIE-2430-DC-C is supplied by one (1) 12 VDC battery for easy powered operation.
  • Power: Units are powered by Hydraulic Cylinders.
  • Color: Blue frame. The suffix "C" represents chrome table top platform.
  • Operation: Die Table units features two (2) ridged and two (2) swivel casters allowing movement and a side brake for stabilizing.
  • Capacity: All units have a capacity of 2,000 lbs. evenly distributed.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Die Table - BDIE Series
Model No. Platform Size (W x L) Lowered Height Raised Height Capacity (LBS) Power Activation Price
1) BDIE-2430-36 24"x30" 24" 36" 2,000 Foot Pump $1,437.28
2) BDIE-2430-48 24"x30" 30" 48" 2,000 Foot Pump $1,503.47
3) BDIE-2430-60 24"x30" 36" 60" 2,000 Foot Pump $1,553.07

4) BDIE-2430-36-C 24"x30" 24½" 36" 2,000 Foot Pump $1,607.66
5) BDIE-2430-48-C 24"x30" 30½" 48" 2,000 Foot Pump $1,770.45
6) BDIE-2430-60-C 24"x30" 36½" 60¾" 2,000 Foot Pump $1,813.78

7) BDIE-2430-DC-C 24"x30" 24" 51" 2,000 DC Powered $4,795.25
