Heavy Duty Turntable

Heavy Duty Turntable - Motorized Turntable - BSTPC series

Beacon® BSTPC Series

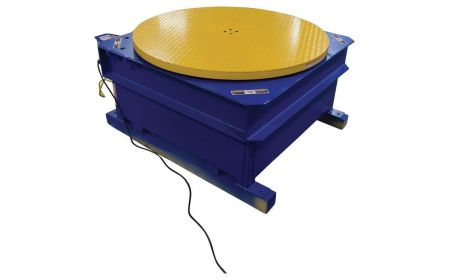

Heavy Duty Turntable is designed to rotate pallets, skids, and a number of large objects. Each motorized turntable includes a 48"-diameter, diamond plate round turntable. The chain or belt driven models are supports variable-speed control; the electric/hydraulic turntable has fixed speed control.
Starting at: $4,275.09

See chart below and click a model number

Product Details

  • Construction: This unit has heavy-duty steel construction for long life and durability. These models come with a turntable base.
  • Size: All 3 available models are 48" wide x 48" long. These models are available in heights of 13-1/2" or 24".
  • Electrical: The Electric Turntable - AC Powered Carousel features a 115 V AC single-phase power unit.
  • Powered: The BSTPC-CD is chain driven with variable speed. The BSTPC-EHD is electric hydraulic with a fixed speed. The BSTPC-WH is belt driven offering variable speed.
  • Installation: Portable or anchor to concrete.
  • Weight: The BSTPC-CD weighs 912 lbs., the BSTPC-EHD weighs 643 lbs. and the BSTPC-WH weighs 523 lbs.
  • Operation: This series is operated with a foot control.
  • Capacity: The BSTPC-CD and BSTPC-EHD are available in a 4,000 lb. capacity and the BSTPC-WH is available in 3,000 lb. capacity.
  • Standard: All 3 Heavy Duty Turntable units come assembled ready for operation.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Heavy Duty Turntable - BSTPC Series
Model No. Overall Size ( W x L x H ) Diameter R.P.M. Height Capacity (LBS) Power Drive Operation Price
1) BSTPC-CD 48" Wx48" Lx24" H 48" 3-12 24" 4,000 115V AC Chain Driven Variable Speed $6,929.81
2) BSTPC-EHD 48" Wx48" Lx13.5" H 48" 8 13½" 4,000 115V AC Electric Hydraulic Driven Fixed Speed $7,315.08
3) BSTPC-WH 48" Wx48" Lx12⅜" H 48" 8 12⅜" 3,000 115V AC Belt Driven Variable Speed $4,275.09
