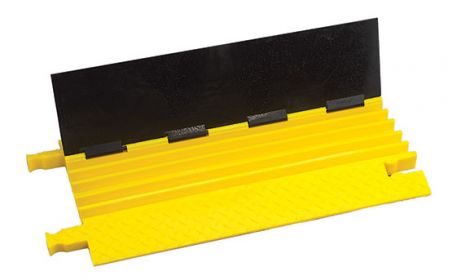

Light Duty Cable Ramp

Light Duty Cable Ramp - Light Duty Cord Protector - BBB5-125 series

Beacon® BBB5-125 Series

The Light Duty Cable Ramp is designed for light traffic and general use applications. This Light Duty Cord Protector is frequently used for entertainment venues and utility work.
Starting at: $302.67

See chart below and click a model number

Product Details

  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents


Options


Light-Duty Cable Ramp - BBB5-125 Series
Model No. Description Length Width Height Channel Width Channel Height Capacity Per Tire (LBS) Capacity Per Axle (LBS) Channels Color Price
1) BBB5-125-T-B/Y "T" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Black/Yellow $302.67
2) BBB5-125-T-B/B "T" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Black/Black $457.45

3) BBB5-125-D-B/Y "Dog Bone" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Black/Yellow $457.45
4) BBB5-125-D-Y/B "Dog Bone" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Yellow/Black $302.67
5) BBB5-125-D-Y/Y "Dog Bone" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Yellow/Yellow $457.45
6) BBB5-125-D-B/B "Dog Bone" Connectors 36" 18" 2" 1.25" 1.25" 6,000 12,000 5 Black/Black $457.45
OPTIONS FOR -T SERIES
Model No. Description Length Width Height Channel Width Channel Height Color Price
7) BBB5Y-125-T-B/Y 45 Degree "Y" Connector 19.5" 18" 2" 1.25" 1.25" Black/Yellow $531.65
8) BBB5X-125-T-B/Y 90 Degree 4-Way Cross 17.5" 18" 2" 1.25" 1.25" Black/Yellow $348.06
9) BBB5EB-125-T-Y End Caps (Pair) 4.8" 18" 2" 1.25" 1.25" Yellow $131.61
OPTIONS FOR -D SERIES
Model No. Description Length Width Height Channel Width Channel Height Color Price
10) BYJ5TL-125-Y/B 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Black $241.47
11) BYJ5TL-125-B/B 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Black/Black $373.71
12) BYJ5TL-125-Y/Y 45 Degree Left Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Yellow $373.71

13) BYJ5TR-125-Y/B 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Black $241.47
14) BYJ5TR-125-B/B 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Black/Black $373.71
15) BYJ5TR-125-Y/Y 45 Degree Right Turn 24" 19.75" 1.875" 1.25" 1.325" Yellow/Yellow $373.71
16) BYJ5EB-125-Y End Caps (Pair) Female: 7.375", Male: 4.25" 19.75" 1.875" 1.25" 1.125" Yellow $213.04
Model No. Description Length Width Height Channel Width Channel Height Color Price
17) BYJ5X-125-Y/B 90 Degree 4-Way Cross 28.5", 24.5" 19.75" 1.875" 1.339" 1.325" Yellow/Black $531.65
18) BYJ5X-125-B/Y 90 Degree 4-Way Cross 28.5", 24.5" 19.75" 1.875" 1.339" 1.325" Black/Yellow $822.88
Model No. Description Length Width Height Color Price
19) BYJ5I-125-M-Y/B Male Interconnect 17.88" 19.75" 1.875" Yellow/Black $227.24
20) BYJ5I-125-F-Y/B Female Interconnect 17.88" 19.75" 1.875" Yellow/Black $227.24
OPTION
Model No. Description Length Width Height Cable Ramp Capacity Rear Wheels Front Casters Price
21) BCT4W-ST Cable Ramp Storage and Transport Cart 32" 19" 42" 10 Two 8" solid rubber Two 5" molded-on-rubber swivel with locks $677.55
