Pail Dumper

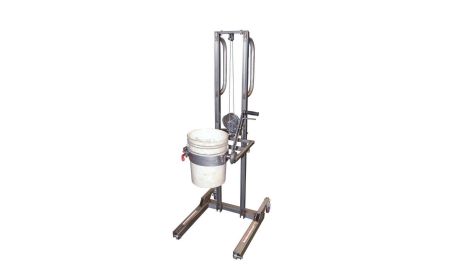

Pail Dumper - Plastic Pail Dispenser - BPAIL/D-5 series

Beacon® BLLW-PAILD-100-PSS Series

The Pail Dumper - Plastic Pail Dispenser minimize redundant worker bending required to pour pail contents. This series provides 24 angle settings for dispensing 5-gallon plastic or steel pails and buckets. The hand cable winch gives the operator rotation control. This unit is portable with two rigid and two swivel casters.
Starting at: $5,123.51

See chart below and click a model number

Product Details

  • Construction: Features 304 stainless steel construction, (bushings, poly casters, riggings and some hardware are not Stainless. Stainless steel winch and 18-8 Stainless steel cable included. Stainless steel components have unpolished mill finish.
  • Size: Accepts 11" pail diameters.
  • Service Range: The cradle lowered height is 6" with a raised height of 62-3/4.
  • Dump Heights: The Pail Tipper unit has a pour height range of 1" lowered to 52" raised.
  • Powered: Pail Tipper rotation is operated with a hand cable winch.
  • Operation: Rotation 135 degrees. (Rotation angle 24 degrees).
  • Capacity: The BLLW-PAILD-100-PSS Pail Tipper has a uniform capacity of 125 lbs.
  • Standard: Includes (2) two rear 4" diameter swivel casters and (2) two front 2" diameter steer casters with total locking, all with Poly-on-Poly material.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Pail Tipper - BLLW-PAILD-100-PSS Series
Model No. Pour Height Lowered / Raised Cradle Height Lowered / Raised Rotation Method Capacity (LBS) Price
1) BLLW-PAILD-100-PSS 1" to 52" 6" to 62¾" Hand 125 $5,123.51
