Coil Lifter

Coil Lifter - BHDP-CL series

Bear Claw® BHDP-CL Series

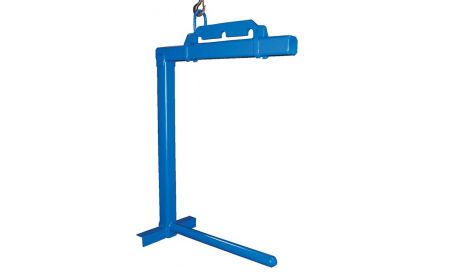

The Coil Lifter features adjustable balance points in order to lift different sizes of coils up to 90" in diameter. For a level load, this series includes a top adjusting bail. This is a hoist-mounted unit. Lifting ring and hoist not included. Unit is compact enough for easy storage.
Starting at: $1,903.99

See chart below and click a model number

Product Details

  • Construction: This series features heavy-duty steel construction.
  • Size: The Coil Lifter rod is 36" long and 2-3/4" in diameter. Overall width is 21".
  • Color: Models are painted Beacon blue.
  • Weight: 375 lbs.
  • Capacity: The Coil Lifter has a capacity of 1,500 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Bear Claw® Coil Lifter - BHDP-CL Series
Model No. Rod Length Rod Diameter Overall Width Capacity (LBS) Max. Coil Diameter Price
1) BHDP-CL 36" 2¾" 21" 1,500 90" $1,903.99
