Portable Gantry Crane Kit

Portable Gantry Crane Kit - BFHSN series

Bear Claw® BFHSN Series

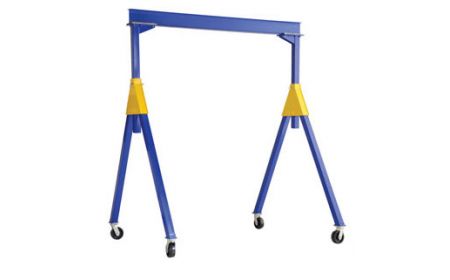

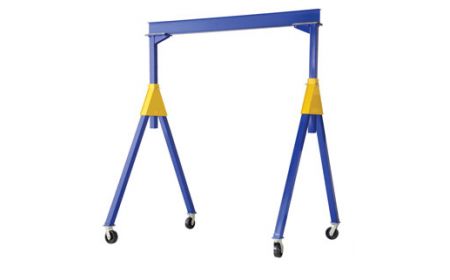

This Portable Gantry Crane Kit is designed to position materials along the beams length. This unit is unique because it can be disassembled when not in use for compact storage and low shipping costs.
Starting at: $2,669.80

See chart below and click a model number

Product Details

  • Construction: This Portable Gantry Crane Kit features steel construction.
  • Size: Fixed Height Design. The under I-Beam to ground height for the BFHSN-50 measures 5'-9' and all other models are 10' under beam.
  • Installation: Units are shipped disassembled and requires assembly by the user. After assembly the unit should be frequently inspected to ensure safe operation.
  • Weight: The weight range of different models is 612 lbs. to 1367 lbs.
  • Usage: Designed for permanent or semi-permanent jobs. Do not move crane while loaded. Engineered to support and move the load under the beam length only.
  • Standard: Portable Gantry Crane Kits feature a quick set up design.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Bear Claw® Portable Gantry Crane Kit - BFHSN Series
Model No. Capacity (lbs.) I-Beam Length & Height I-Beam Flange Width Under I-Beam to Ground Base Width Note Price
1) BFHSN-2-10 2,000 10'-6" 4" 10' 64-½" A $2,669.80
2) BFHSN-2-15 2,000 15'-6" 4" 10' 64-½" A $2,908.90
3) BFHSN-2-20 2,000 20'-10" 4" 10' 64-½" A $3,523.36

Bear Claw® Portable Gantry Crane Kit - BFHSN Series (continued)

Model No. Capacity (lbs.) I-Beam Length & Height I-Beam Flange Width Under I-Beam to Ground Base Width Note Price
4) BFHSN-4-10 4,000 10'-8" 4" 10' 64-½" A $2,923.01
5) BFHSN-4-15 4,000 15'-8" 4" 10' 64-½" A $3,331.28
6) BFHSN-4-20 4,000 20'-12" 4" 10' 64-½" A $4,904.70

7) BFHSN-6-10 6,000 10'-8" 4" 10' 64-½" A $3,435.65
8) BFHSN-6-15 6,000 15'-10" 4" 10' 64-½" A $4,811.89
9) BFHSN-6-20 6,000 20'-12" 6½" 10' 64-½" A $5,576.30

10) BFHSN-8-10 8,000 10'-8" 4" 10' 64-½" A $5,141.23
11) BFHSN-8-15 8,000 15'-10" 4" 10' 64-½" A $5,458.06
12) BFHSN-8-20 8,000 20'-12" 6½" 10' 64-½" A $6,927.13

Bear Claw® Portable Gantry Crane Kit - BFHSN Series (continued)

Model No. Capacity (lbs.) I-Beam Length & Height I-Beam Flange Width Under I-Beam to Ground Base Width Note Price
13) BFHSN-10-10 10,000 10'-10" 4" 10' 64-½" A $6,048.28
14) BFHSN-10-15 10,000 15'-12" 4" 10' 64-½" A $7,757.85
Notes:
A: * Hoist & Trolley sold separately*. *Assembly by others*.
Bear Claw® Portable Gantry Crane Kit - BFHSN Series - OPTION
Model No. Description Note Price
15) BFHS-STLO OPTION-Stationary Leg , set of 4 (factory installed)   $286.15
16) BFHS-STLO-RF OPTION-Stationary Leg , set of 4 (field installed)   $381.54
Notes:
A: * Hoist & Trolley sold separately*. *Assembly by others*.
