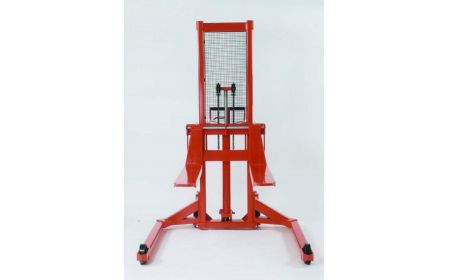

Pallet Mover

Beacon® BTSS Series

Pallet Mover - Product Stacker (for skid and pallet entry) is an extremely efficient portable product lift. The powered models include smooth lift truck acceleration.
Starting at: $3,491.96

Product Details

  • Lowered Fork Height: This series has a lowered height of 1-1/2".
  • Raised Fork Height: Models feature the following raised heights: 60", 68", 76", 97", 113", 128" or 147".
  • Overall Fork Width: This series has 6-1/2" fork width. User adjustable fork width is standard.
  • Electrical: 12V
  • Powered: 12V /90Ah.
  • Power: Power models have extended duty cycles and discharge indicator provides battery status at a glance. Battery quick disconnects - no tools needed for battery maintenance. Auto stop release handle - no coasting.
  • Color: Red
  • Note: Adjustable straddle legs.
  • Capacity: 2,200 or 3,000 lbs.
  • Standard: Lift/lower controls are in the steering handle. Overload valve. Steer wheels are larger and steerable on electric models. Manual Pallet Mover unit has 2 speeds.
  • Warranty: One year structural and electrical.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents

WARNING This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov



Pallet Mover - Manual Drive - Manual Lift - BTSS Series
Model# Lifting Height Capacity (LBS) Raised Height Lowered Height Fork Width Overall Width Overall Length Note Price
1) BTSS-22-46-MM 46" 2,200 60" 2½" 6½" 48½" 65" A $3,491.96
2) BTSS-22-54-MM 54" 2,200 68" 2½" 6½" 48½" 65" A $3,521.43
3) BTSS-22-62-MM 62" 2,200 76" 2½" 6½" 48½" 65" A $3,568.57
Notes:
A: Load Center 24". Units ship fully assembled on skids.
Pallet Mover - Manual Drive - Electric Lift - BTSS Series
Model# Lifting Height Capacity (LBS) Raised Height Lowered Height Fork Width Overall Width Overall Length Note Price
4) BTSS-22-46-ME 46" 2,200 60" 2½" 6½" 48½" 68" A $5,400.01
5) BTSS-22-54-ME 54" 2,200 68" 2½" 6½" 48½" 68" A $5,495.78
6) BTSS-22-62-ME 62" 2,200 76" 2½" 6½" 48½" 68" A $5,591.55
7) BTSS-22-79-ME 79" 2,200 97" 2½" 6½" 48½" 68" A $5,952.54
8) BTSS-22-95-ME 95" 2,200 113" 2½" 6½" 48½" 68" A $6,217.75
9) BTSS-22-111-ME 111" 2,200 128" 2½" 6½" 48½" 68" A $6,622.93
10) BTSS-22-128-ME 128" 2,200 147" 2½" 6½" 48½" 68" A $7,145.99
11) BTSS-30-46-ME 46" 3,000 60" 1½" 4" 48½" 68" A $5,613.65
12) BTSS-30-54-ME 54" 3,000 68" 1½" 4" 48½" 68" A $5,716.79
13) BTSS-30-62-ME 62" 3,000 76" 1½" 4" 48½" 68" A $5,834.66
Notes:
A: Load Center 24". Units ship fully assembled on skids.
Pallet Mover - Power Drive - Electric Lift - BTSS Series
Model# Lifting Height Capacity (LBS) Raised Height Lowered Height Fork Width Overall Width Overall Length Note Price
14) BTSS-22-46-EE 46" 2,200 60" 1½" 4" 48½" 68" A $12,887.83
15) BTSS-22-54-EE 54" 2,200 68" 1½" 4" 48½" 68" A $13,046.96
16) BTSS-22-62-EE 62" 2,200 76" 1½" 4" 48½" 68" A $13,206.08
17) BTSS-22-79-EE 79" 2,200 97" 1½" 4" 48½" 68" A $13,953.10
18) BTSS-22-95-EE 95" 2,200 113" 1½" 4" 48½" 68" A $14,203.58
19) BTSS-22-111-EE 111" 2,200 128" 1½" 4" 48½" 68" A $14,457.00
20) BTSS-22-128-EE 128" 2,200 147" 1½" 4" 48½" 68" A $15,072.88
21) BTSS-30-46-EE 46" 3,000 60" 1½" 4" 48½" 68" A $13,477.19
22) BTSS-30-54-EE 54" 3,000 68" 1½" 4" 48½" 68" A $13,636.32
23) BTSS-30-62-EE 62" 3,000 76" 1½" 4" 48½" 68" A $13,795.44
Notes:
A: Load Center 24". Units ship fully assembled on skids.
OPTION
Model# Description Note Price
24) BTSS-AC Auxiliary Controller $312.36
25) BTSS-HB Hand Brake $390.45
26) BTSS-LE Level Eye up to 63" lift. $2,357.44
Notes:
A: Load Center 24". Units ship fully assembled on skids.
