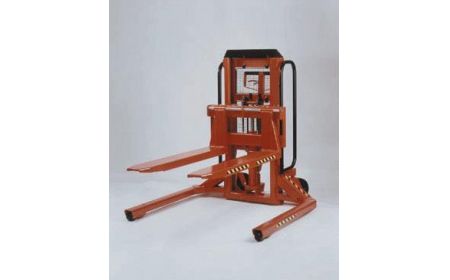

Motorized Pallet Jack

Beacon® BTPS Series

The Motorized Pallet Jack -Hydraulic Pallet Truck is an electric lift or manual lift with manual or full power drive unit. It features a low head clearance.
Starting at: $3,462.49

Product Details

  • Raised Fork Height: 35"
  • Overall Fork Length: 42"
  • Electrical: 12 V ac
  • Power: This unit has an extended duty cycle and a discharge indicator (provides battery status at a glance).
  • Color: Red
  • Operation: This series is available in three different models: manual drive with manual lift, manual drive with electric lift, or electric drive with electric lift.
  • Capacity: Features capacities of 2,200 or 3,000 lbs.
  • Standard: Large tubular handles. Lift/lower controls are in the steering handle of the Motorized Pallet Jack. Overload valve.
  • Warranty: One year structural and electrical.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents

WARNING This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov


Motorized Pallet Jack - BTPS Series
Model# Drive Lift Capacity Overall Height Lift Height Fork Width/Length Overall Width Overall Length Note Price
1) BTPS-22-MM Manual Manual 2,200 lbs. 52½" 35" 14"-31" / 42" 48½" 65" A $3,462.49
2) BTPS-22-ME Manual Electric 2,200 lbs. 52½" 35" 14"-31" / 42" 48½" 66" A $5,139.22
3) BTPS-22-EE Electric Electric 2,200 lbs. 52½" 35" 14"-31" / 42" 48½" 66" A $12,724.58
4) BTPS-30-ME Manual Electric 3,000 lbs. 52½" 35" 14"-31" / 42" 48½" 66" A $5,831.86
5) BTPS-30-EE Electric Electric 3,000 lbs. 52½" 35" 14"-31" / 42" 48½" 66" A $13,260.60
Notes:
A: Units ship fully assembled on skids.
