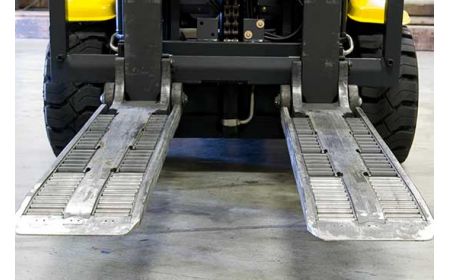

Fork Roller Conveyors

Beacon® BRF Series

The Fork Roller Conveyors are designed as mechanical forks to aid in fork truck efficiency. These units allow for the ability of fork trucks to quickly place and retrieve heavy loads. Ideal for use with pallet-less or pallet systems, including corrugated bundles, FIBC bags, large bulk sacks, and slip-sheeted items. Each unit features dual roller cartridges. Units are available as type II or type II/III mounting classes. ISO/FEM is either 2A or 3A.
Starting at: $8,110.56

Product Details

  • Size: Models range in width from 6.33" to 12.2" and in length from 43.33" to 47.33". Heal thicknesses range from 1-9/10" to 2-3/10".
  • Weight: Units range in weight from 255 to 595 lbs.
  • Capacity: Fork Roller Conveyors have capacities ranging from 2,200 lbs. to 6,600 lbs.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Fork Roller Conveyors - BRF Series
Model# Width Length Heal Thickness Capacity (LBS) Mounting Class ISO/FEM Price
1) BRF-20-42 7.5" 43.333" 1.9" 2,200 II 2A $8,110.56
2) BRF-20-48 7.5" 47.33" 1.9" 2,200 II 2A $8,438.89
3) BRF-30-42 6.33" 43.333" 1.9" 3,300 II/III 2A $8,885.48
4) BRF-30-48 6.33" 47.33" 1.9" 3,300 II/III 2A $9,267.50
5) BRF-40-42 8.25" 43.333" 2.3" 4,400 II 2A $8,781.53
6) BRF-40-48 8.25" 47.33" 2.3" 4,400 II 2A $9,163.67
7) BRF-50-42 8.25" 43.333" 2.3" 5,300 II/III 2A $9,245.52
8) BRF-50-48 8.25" 47.33" 2.3" 5,300 II/III 2A $9,685.81
9) BRF-60-42 12.2" 43.333" 2.3" 6,600 II/III 3A $9,467.04
10) BRF-60-48 12.2" 47.33" 2.3" 6,600 II/III 3A $9,985.17
