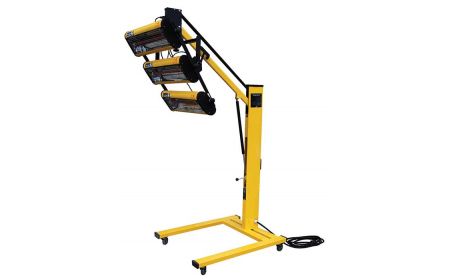

Portable Infrared Heater

Portable Infrared Heater - Workshop Heater - BHEAT series

Beacon® BHEAT Series

The Portable Infrared Heater - Workshop Heater allow users to adjust radiant heat in both distance and height. These units have an adjustable brightness and are available with 3, 4, or 6 lamp elements. An included timer allows for auto-shut off when the heater is no longer needed. This series is portable on 2 swivel casters and 2 swivel casters with brakes.
Starting at: $2,427.32

See chart below and click a model number

Product Details

  • Size: Units feature an overall element size of 6" deep and ranging in width from 27" to 39", in height from 18" to 30". Each element is 7-3/4" high and 4-1/4" deep and either 17-3/4" or 23-1/2" wide.
  • Electrical: This Portable Infrared Heater series requires 220V single phase power at 15 amps.
  • Weight: 105, 115, or 135 lbs.
  • Options: Portable Infrared Heater units are available with maximum power outputs of 2000, 2400, or 3000 Watts.
  • Surcharge: Tariffs or surcharges may apply to current published pricing.

Documents



Portable Infrared Heater - BHEAT Series
Model No. Max. Power Output Lamp Elements Element Overall Size (W x H x D) Element Size Each (W x H x D) Required Power Price
1) BHEAT-S 2400 W 3 27"x30"x6" 23½"x7¾"x4¼" 220V, 1 Phase @ 15 Amps $2,427.32
2) BHEAT-S1 2000 W 4 39"x18"x6" 17¾"x7¾"x4¼" 220V, 1 Phase @ 15 Amps $2,583.58
3) BHEAT-S2 3000 W 6 39"x30"x6" 17¾"x7¾"x4¼" 220V, 1 Phase @ 15 Amps $3,087.30

TM
Call Beacon: 800-454-7159
