Beacon Model: Beacon BMG series column guard

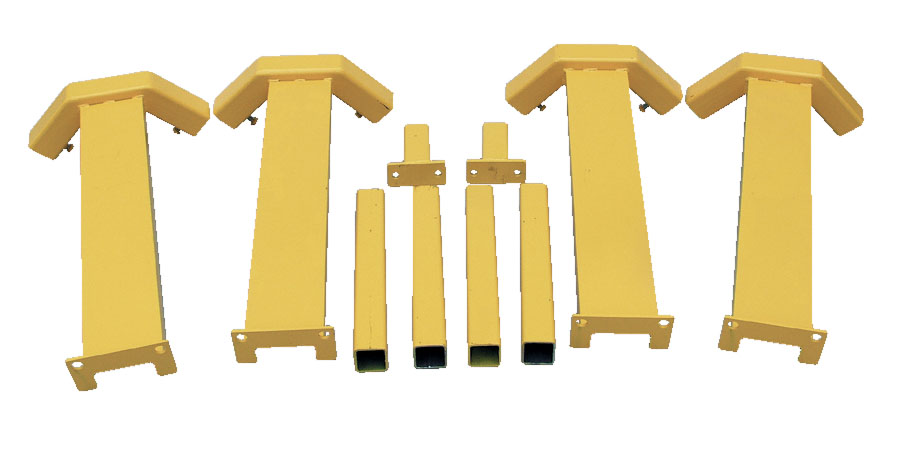

Description: Beacon modular column guard systems protect columns, racking, machinery and many other items frequently found in industrial settings. These modular guards are designed for quick assembly and are available in different railing lengths and heights to fit nearly any application. The modular guard railing sections are secured to each steel guard post with a single bolt. These protective post models are available in either corner post units or straight post units. These models also come in either single-rail or double-rail style. All components are sold separately.
Construction: Each column guard section is constructed from heavy-duty 3" square steel tubing.
Size: The modular guard sections are available in effective lengths ranging from 48" to 144" and in overall lengths ranging from 56" to 152". The steel guard post units are 36" high.
Weight: The column guard sections come in various weights ranging from 26 to 71 lbs. The single-rail mounting posts weigh 37 lbs. The double-rail mounting posts weigh 49 lbs.
Options: Wall mounting column guard tubing and concrete anchor bolts also are available.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
|
|
|
|
|
|
|
