Product: Scissor lift

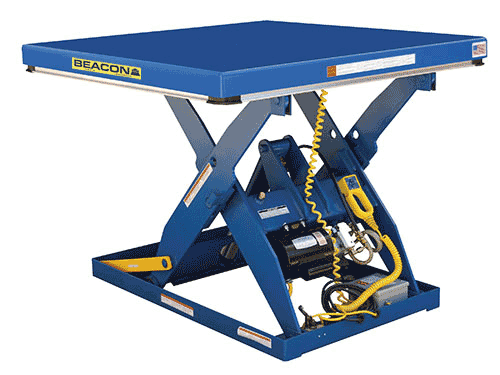

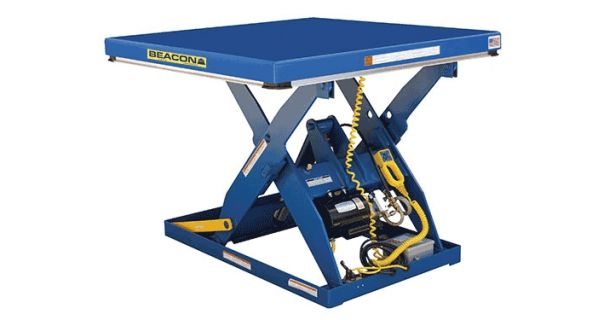

Beacon Model: Beacon BEHLT series scissor lift.
Description: Beacon hydraulic single scissor lift tables are designed to raise materials the proper ergonomic height for the worker. Electric hydraulic scissor lift tables are excellent for many industrial locales including warehouses, distribution centers and manufacturing facilities. Beacon scissor lifts have a 3,000 psi hydraulic component rating.
Construction: Hydraulic scissor lift features high-quality steel construction.
Operation: One to four hydraulic cylinders control the vertical deck movement of scissor lifts.
Size: Hydraulic scissor lift tables have deck widths ranging from 24" up to 48". Actual lengths range from 48" up to 120."
Service Range: The scissor lift models have lowered heights ranging from 7" to 12" and raised heights ranging from 43" to 82".
Capacities: These scissor lifts come in capacities ranging from 1,000 to 12,000 lbs.
Electrical: The hydraulic scissor lift table is supplied with an internal 2 Hp motor. 460 VAC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
Standard: Standard safety features on electric hydraulic scissor lift tables include electric pinch point protection, internal brass velocity fuse, 24 V AC push-button control, a hinged maintenance prop and an upper travel limit switch.
Options: Scissor lifts are available with an optional foot control. Additional options include a 42" high self-locking gate, a warning light and a warning beeper.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Color: Beacon water base enamel blue liquid is our standard finish. Options with special pricing include other water base colors, powder coat, Steel-It Polyurethane Coating, Line-X Polyurea/Polyurethane Coating and ZRC Cold Galvanized Compound Coating.
Weight: The scissor lift models weigh from 700 to 2,415 lbs.
Warranty: One-year structural, hydraulics and electrical. To Keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All Hydraulic Lift Tables are quoted the capacity within its deck size.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
