Lift Table
Product: Lift table

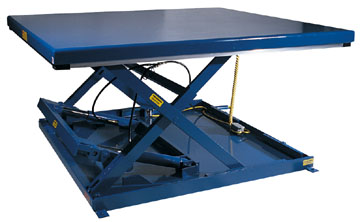

Beacon Model: Beacon BEHLTX series low profile scissor lift table.
Description: The Beacon low profile scissor lift table simplifies the loading and unloading skids without the need for a pit with a pallet jack. Scissor lift table is ideal for applications in distribution centers, warehouses and manufacturing facilities.
Construction: The low profile scissor lift table features heavy-duty steel construction.
Size: The scissor lift table is available with a maximum platform size up to 60" wide x 60" long.
Service Range: The low profile scissor lift has a maximum raised height of 39".
Capacity: The scissor lift table features a 3,500-lb. capacity.
Electrical: 460 VAC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
Standard: Low profile scissor lift tables include electric perimeter pinch point guards, emergency stop velocity fuse in cylinders, fused 24 V AC hand-held control and maintenance supports. Scissor lifts feature a remote power unit complete with a plastic cover.
Options: Optional approach ramps are an excellent addition to low profile scissor lifts to increase their versatility.
Weight: Low profile scissor lift models weigh from 1,470 to 1,869 lbs.
Note: Please note motor voltage and phase when ordering.
Warranty: To Keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All Hydraulic Lift Tables are quoted the capacity within its deck size.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
