Beacontechnology.com tall scissor lift platform features steel construction.

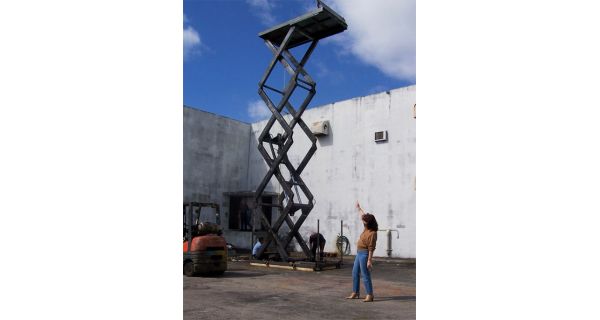

Tall Scissor Lift Platform

    Homepage–>Scissor Lifts–>Tall Scissor Lift Platform
Product: Tall scissor lift platform
Beacon Model: Beacon BQSL series tall scissor lift platform.
Description: Beacon super tall scissor lift platform is a high-travel, quadruple-height electro-hydraulic scissor lift. The tall scissor lift platform features a high-pressure gear pump and lifetime self-lubricating, anti-friction bearings at all pivot points. This tall scissor lift platform is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Construction: The tall scissor lift platform features steel construction.
Size: The super tall scissor lift table is available with standard platform sizes of 60" x 96" or 60" x 120" and in maximum platform sizes of 84" x 120" or 84" x 144".
Service Range: The scissor lift units come in lowered heights of 54" or 68" and in raised heights of 294" or 356".
Capacity: The super tall scissor lift table comes in capacities of 3,000 or 6,000 lbs.
Electrical: 230 / 480 Vac, 3 Phase, 60 Hz is standard. Other electrical options are available.
Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
Options: A large variety of options are available, including approach ramps, handrails/toe boards and a steel safety treadplate bridge with hinge assembly.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The scissor lift models come in weights of 7,500, 8,000, 9,000 or 10,850 lbs.
Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
Warranty: To Keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All Hydraulic Lift Tables are quoted the capacity within its deck size.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
