Heavy duty double scissor lift reduces employee fatigue.

Heavy Duty Double Scissor Lift

Heavy Duty Double Scissor Lift Tech Sheet

Heavy Duty Double Scissor Lift Additional Info Sheet

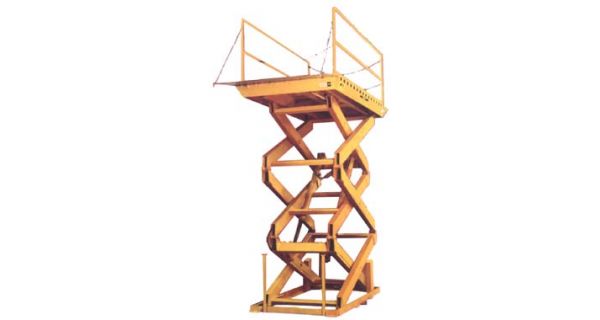

Product: Heavy duty double scissor lift
Beacon Model: Beacon BTSL series heavy duty double scissor lift.
Description: Beacon heavy duty double scissor lift is a high-travel triple electro hydraulic scissor lift. This heavy duty double scissor lift features a high-pressure gear pump and a hydraulic flow limiter at the base of each cylinder. This double scissor lift table also features mechanical upper travel stops and safety restraint maintenance bars.
Construction: The heavy duty double scissor lift features heavy-duty steel construction.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Scope: This scissor lift table is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering and beveled toe guards will be supplied at no charge. Call for optional electric toe guard pricing.
Size: The heavy duty double scissor lift is available in a variety of standard platform sizes ranging from 30" x 42" to 60" x 120" and in maximum platform sizes ranging from 48" x 66" to 84" x 144". The base frames range from 30" x 42" to 60" x 112".
Service Range: The heavy duty double scissor lift is available with lowered heights ranging from 14-1/4" to 54" and with raised heights ranging from 86-1/4" to 270".
Operating Range: It is the customers responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Capacity: The heavy duty double scissor lift comes in capacities of 3,000 or 6,000 lbs.
Options: An optional upper travel limit switch is available with this scissor lift platform.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The scissor lift platform is available in a variety of weights ranging form 2,100 to 9,000 lbs.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
