Beacon® BDSL Series

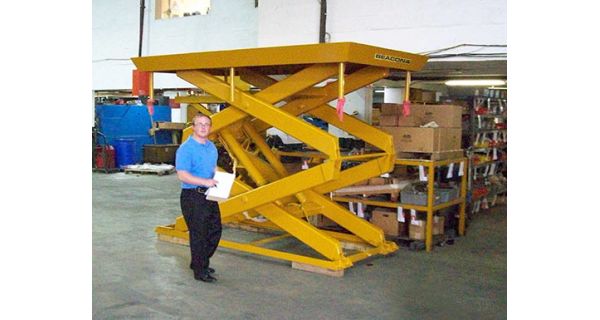

This mezzanine Upright Scissor Lift is a high-travel, double electro-hydraulic lift. This unit is supplied with standard straight toe guards for surface mounting or tapered toe guards for pit mount. Call for optional electric toe guard pricing. This unit has a high-pressure gear pump and a hydraulic flow-limiter valve at the base of each cylinder. These models also feature safety restraint maintenance bars and mechanical upper travel stops.
Call for custom quote for your application

See chart below and click a model number

Product Details

  • Construction: These units features steel construction. When platform width is the minimum size and requires removable handrails, the sockets for the handrails are welded on top of the platform, due to minimal substructure room.
  • Projection: For optional beveled toe guards add 8" to the width and length. For optional straight toe guards with electric toe guard tape switch add 4" to the width and length. Specify the option during quoting for special pricing.
  • Size: Models come with standard platform sizes ranging from 30" x 48" to 54" x 108". They come with maximum platform sizes ranging from 48" x 72" to 72" x 132". The base frames range from 30" x 48" to 54" x 108".
  • Service Range: The Mezzanine Upright Scissor Lift units come with lowered heights ranging from 10" to 18" and raised heights ranging from 70" to 162".
  • Electrical: 24 V operating control voltage.
  • Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric properties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
  • Weight: Weights range from 1,500 to 4,500 lbs.
  • Capacity: Available with capacities of 2,000, 4,000, or 6,000 lbs. Published capacities are rated as evenly distributed when the load is applied in the lowered position and then raised. Any applied load in the raised position, centered, end or side derates the published capacity, contact Beacon for specifications.
  • Standard: Smooth steel plate deck surface.
  • Options: An optional upper travel limit switch is available. Steel treadplate deck surface.
  • Limited Warranty: To keep the warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity. All units are quoted the capacity within its deck size and must keep with a uniformly distributed load.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.

Documents


Options


Upright Scissor Lift - BDSL Series
Model No. Travel (inches) Cap Lbs Edge Load Static Edge Load Rolling Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
1) BDSL-20-060 60 2000 1000 670 30x48 48x72 30x48 10 70 35 1.5 1 A $Call
2) BDSL-40-060 60 4000 2000 1340 30x48 48x72 30x48 14 74 45 1.5 2 A $Call
3) BDSL-60-060 60 6000 3000 2000 30x48 48x72 30x48 16 76 45 1.5 2 A $Call

4) BDSL-20-072 72 2000 1000 670 30x60 48x84 30x60 10 82 40 1.5 1 A $Call
5) BDSL-40-072 72 4000 2000 1340 30x60 48x84 30x60 14 86 50 1.5 2 A $Call
6) BDSL-60-072 72 6000 3000 2000 30x60 48x84 30x60 16 88 85 1.5 2 A $Call

7) BDSL-20-090 90 2000 1000 670 48x72 60x96 48x72 14 104 35 1.5 2 A $Call
8) BDSL-40-090 90 4000 2000 1340 48x72 60x96 48x72 14 104 28 4.8 2 A $Call
9) BDSL-60-090 90 6000 3000 2000 48x72 60x96 48x72 16 106 40 4.8 2 A $Call

Upright Scissor Lift - BDSL Series (continued)

Model No. Travel (inches) Cap Lbs Edge Load Static Edge Load Rolling Platform Std. Platform Max. Base Lowered Height (inches) Raised Height (inches) Approx Up Speed Motor HP Cyl. Note Price
10) BDSL-20-108 108 2000 1000 670 54x84 72x108 54x84 14 122 30 4.8 2 A $Call
11) BDSL-40-108 108 4000 2000 1340 54x84 72x108 54x84 14 122 40 4.8 2 A $Call
12) BDSL-60-108 108 6000 3000 2000 54x84 72x108 54x84 16 124 60 4.8 2 A $Call

13) BDSL-20-120 120 2000 1000 670 54x96 72x120 54x96 14 134 30 4.8 2 A $Call
14) BDSL-40-120 120 4000 2000 1340 54x96 72x120 54x96 14 134 40 4.8 2 A $Call
15) BDSL-60-120 120 6000 3000 2000 54x96 72x120 54x96 16 136 60 4.8 2 A $Call

16) BDSL-20-144 144 2000 1000 670 54x108 72x132 54x108 16 160 35 4.8 2 A $Call
17) BDSL-40-144 144 4000 2000 1340 54x108 72x132 54x108 16 160 40 4.8 2 A $Call
18) BDSL-60-144 144 6000 3000 2000 54x108 72x132 54x108 18 162 60 4.8 2 A $Call
Notes:
A: *Standard platforms. Oversized platforms, beveled toeguards, roller shades, accordion skirting and electrical tape switches will affect overall size. Power requirements depend upon frequency and type of operation and require specific selection. Standard power supply for 3/4and 1 1/2HP power Unit is 230V/1PH/60hz. Optional power supply for 3/4and 1 1/2HP Power Unit is 208/230/460/3PH/60Hz . 115V/1PH/60Hz power supply requires a 30 amp circuit and 3/4HP motor is required. This will double the up speed. Standard power supply for 4.8HP power units is 230/460/3PH/60Hz. Optional power supply for 4.8HP power unit is 230V/1PH/60Hz (increases up speed by 33%). Note: Where available power supply is 208V/3PH, booster transformers are required for 240V/3PH at motor, see options. Conforms to or exceeds ANSI standard MH29.1-1994.
