Beacontechnology.com hydraulic scissor lifts decrease employee fatigue.

Hydraulic Scissor Lifts

    Homepage–>Scissor Lifts–>Hydraulic Scissor Lifts
Hydraulic scissor lifts feature steel construction.

Additional Product Images


Hydraulic Scissor Lifts

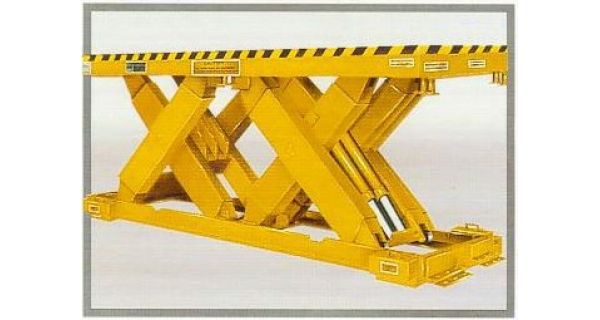

Beacon BMLTDL series hydraulic scissor lifts.
Hydraulic Scissor Lifts Tech Sheet		Beacon World Class Hydraulic Scissor Lifts and Electric Scissor Lift
Hydraulic Scissor Lifts Additional Info Sheet
Product: Hydraulic scissor lifts
Beacon Model: Beacon BMLTDL series hydraulic scissor lifts.
Description: Beacon long extra heavy capacity hydraulic scissor lifts are heavy-duty, high-capacity lifts. These hydraulic scissor lifts feature dual safety restraint maintenance bars and positive stops on all four corners for maximum roll over capacity. These heavy capacity hydraulic scissor lifts also feature dual safety restraint maintenance bars and cylinder rod end protectors. The hydraulic scissor lifts are supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Construction: The hydraulic scissor lifts feature steel construction.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Size: The heavy capacity hydraulic scissor lifts have standard platform sizes ranging from 48" x 120" to 48" x 216" and maximum platform sizes ranging from 72" x 168" to 72" x 264".
Service Range: The hydraulic scissor lift table is available with lowered heights of 16" or 20" and with a variety of raised heights ranging from 46" to 92".
Capacity: The heavy capacity scissor lift tables come in a variety of capacities ranging from 25,000 to 60,000 lbs.
Power: Each model features an externally mounted power unit.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The scissor lift tables come in a variety of weights ranging from 6,000 to 10,400 lbs.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
