Electric Scissor Lift

    Homepage–>Scissor Lifts–>Electric Scissor Lift
Electric scissor lift features capacities of up to 30,000 lbs.

Additional Product Images


Electric Scissor Lift

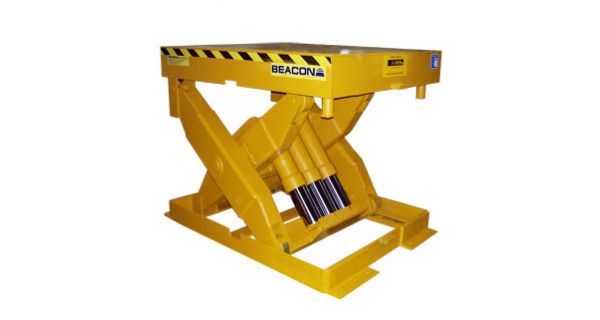

Beacon BMLT series electric scissor lift.
Electric Scissor Lift Tech Sheet		Beacon World Class Electric Scissor Lift and Portable Scissor Lift Table
Electric Scissor Lift Additional Info Sheet
Product: Electric scissor lift
Beacon Model: Beacon BMLT series electric scissor lift.
Description: Beacon BMLT electric scissor lift is electro-hydraulic, heavy-duty scissor lifts. The lift table features a smooth steel platform. This electric scissor lift is supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call for optional electric toe guard pricing. The electric scissor lifts also have cylinder rod end protectors and dual safety restraint maintenance bars.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Scope: It is the customer's responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
Size: The electric scissor lifts come with standard platform sizes ranging from 48" x 60" to 48" x 108" and maximum platform sizes ranging from 72" x 84" to 72" x 132".
Service Range: The scissor lifts have lowered heights of 16" or 20" and a variety of raised heights ranging from 46" to 92".
Capacity: The electric scissor lifts are available with a variety of capacities ranging from 15,000 to 30,000 lbs.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The heavy capacity lift tables come in a variety of weights ranging from 3,100 to 5,200 lbs.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
