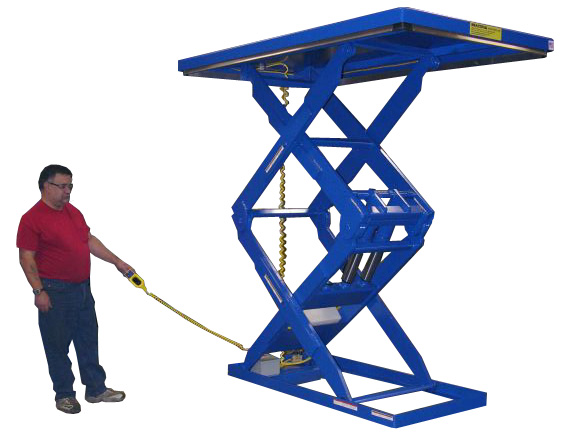

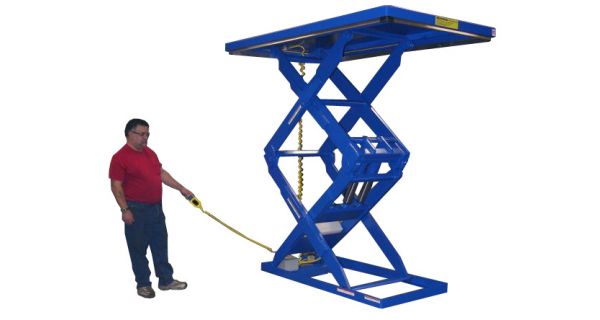

Product: Upright scissor lift
Beacon Model: Beacon BEHLTD series upright scissor lift.
Description: Beacon upright scissor lift tables are designed to lift products to high elevations. The upright scissor lift table is ideal for use at all types of manufacturing and industrial facilities.
Construction: The upright scissor lift is constructed of heavy-duty steel.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Size: The platform width of the upright scissor lift ranges from 34" to 48". The platform length ranges from 48" to 88".
Service Range: The raised height of the upright scissor lifts are 70" or 84". The lowered heights are 10" or 12". The unit's vertical travel is 60" or 72".
Capacity: The capacities of the ergonomic upright scissor lifts range from 1,000 to 5,000 lbs.
Standard: The upright scissor lift table includes the following standard features: electric toe guards for the pinch point areas, brass velocity fuse, 24 V AC push-button hand control, maintenance prop and upper travel limit stop switch.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The ergonomic upright scissor lifts weigh from 1,470 to 2,021 lbs.
Note: Travel times are based on 460 V 3-phase power ranges between 7 and 23 seconds, depending on the size of unit. It is the customers responsibility to meet all federal, state and local codes regarding height restrictions and safety requirements.
|
