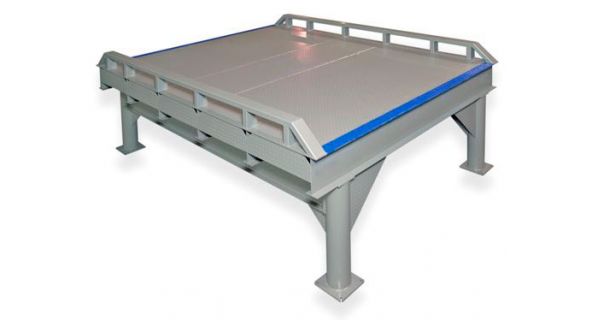

Product: Mobile loading dock portable platform
Beacon Model: MLD series mobile loading dock portable platform
Description: Mobile Loading Dock Portable Platform serves as a loading dock in remote areas for truck trailer and railcar applications. Place in front of railcar for a 90 degree loading and unloading procedure. Ideal for placing in yard for remote 180 degree truck trailer loading and unloading. Available with standard fixed legs or optional adjustable legs. Steel platforms are a fast economical wasy to expand your dock area and increase freight handling capabilities without the expense of concrete work.
Construction: Heavy duty steel construction allows for a long lasting mobile loading dock portable platform.
Size: The standard size of the mobile loading dock portable platform are all 8 feet wide with lenghts ranging from 8, 10' or 12' feet long. Special sizes are available.
Service Range: All standard mobile loading dock portable platforms are manufactured with fixed legs. The customer specifies the height of the platform with an maxium allowance of up to 65". Optional adjustable legs allow for a deck elevation range of 44" to 55".
Capacities: Serveral capacities are available for the mobile loading dock portable platform ranging from 16,000 lbs, 20,000 lbs, 25,000 lbs or 30,000 lbs. Special capacities are available for special applications.
Options: The optional adjustable legs assist in deck height while the optional edge of doc leveler asisists in the truck trailer loading and unloading procedure. Optional yard ramps assist in ground loading or unloading.
Installation: Steel platforms can be easily relocated to other areas of your yard where a free standing loading dock may be needed. This measns more trucks and railcars can be loaded and unloaded during peak loading times.
Color: The color of the poratble platforms are ergonomic grey to blend in with the background.
Usage: The mobile loading dock portable platform and optional Beacon yard ramp is ideal for satellite loading and unloading areas.
Prices may increase due to steel surcharge.
