Crane Hoist

Product: Crane hoist

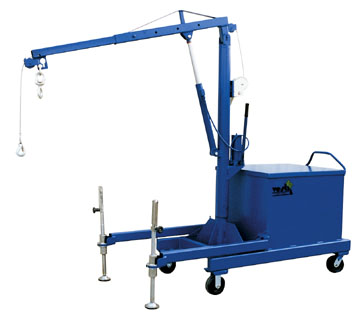

Beacon Model: Beacon BP-JIB series portable crane hoist.
Description: The Beacon crane hoist is ideal for a wide variety of industrial heavy-lifting applications. Crane hoist features outriggers for increased stability and a swivel crane for side loading. The portable floor crane hoist also has a double-acting manual hydraulic hand pump and adjustable swing outriggers with leveling jacks to stabilize the portable hoist from side to front. The portable floor hoist is available with or without counterbalancing ballast. The hoist has phenolic casters that measure 8" x 2".
Operation: The BP-JIB Portable Cantilever Crane Hoist rotates 360 degrees.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Projection: The 2 Outrigger 40" Legs piviots for overall stability. Floor locks are on the end of each of the two Outriggers. The main body frame of the Crane Hoist includes 4 each 8" phenolic casters.
Size: The portable crane hoist measures 32" wide x 90-13/16" long x 87-5/16" high with a 48" arm length beyond the frame.
Service Range: Overall Length: 111-13/16" Extended and 90-13"/16" Retracted.
Capacity: The BP-JIB-2 portable floor hoist features a 2,000-lb. capacity. The BP-JIB-4 hoist has a 4,000-lb. capacity.
Standard: Sand bags are provided when ordering without ballast.
Weight: The BP-JIB-2 hoist weighs 850 lbs. The BP-JIB-4 model weighs 1,050 lbs.
Note: The unit breaks down in sections to be shipped on 2 pallets.
