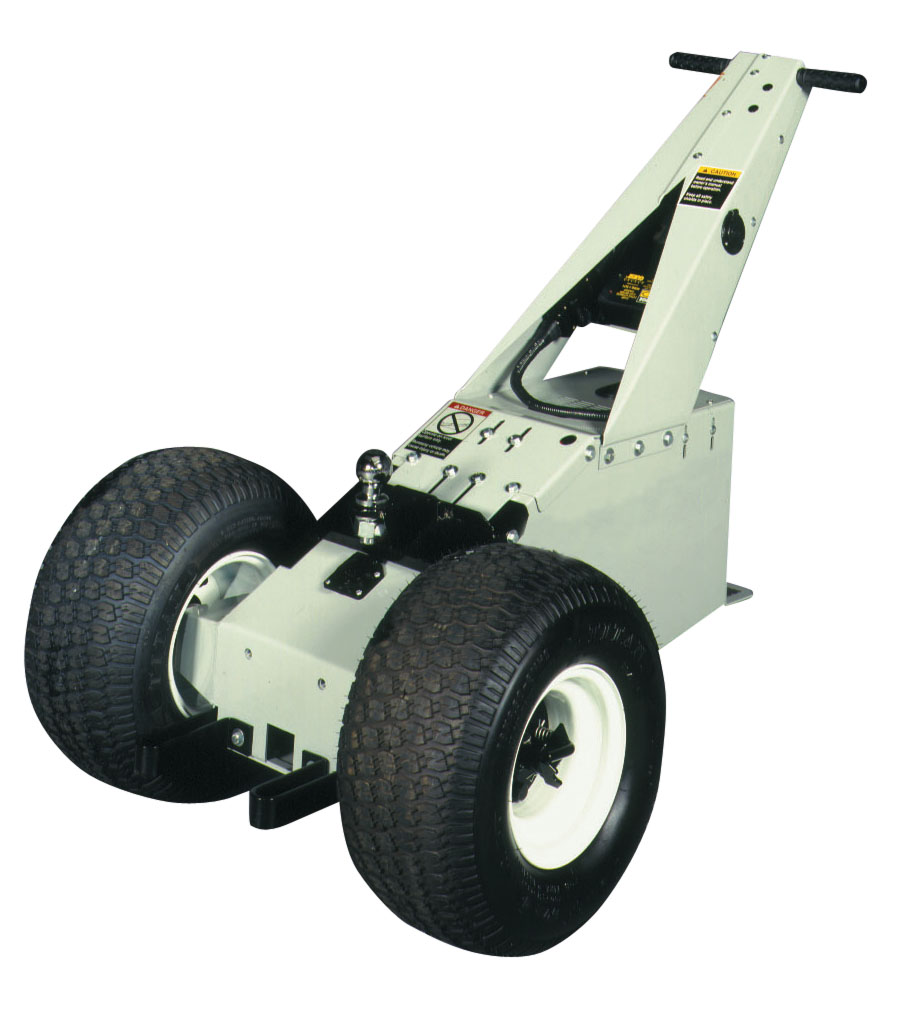

Product: Trailer mover
Beacon Model: Beacon BPMM series power trailer mover.
Description: The Beacon trailer mover is compact and highly maneuverable, enabling excellent turning in tight spaces. The unit's ergonomical design provides simple control and superb stability. This power trailer mover features variable speed control, providing smooth acceleration, generous low speed torque and precision maneuverability. Most trailer mover models have robust hydraulics, ensuring excellent push or pull traction.
Operation: The environment and application can be different from customer to customer which will require the operators to learn the machines capabilities. Then use these capabilities to perform tasks in a safe and careful manner.
Size: The power trailer mover is available in four sizes: 33" wide x 49" long x 40" high, 38" wide x 53" long x 38" high, 36" wide x 78" long x 43" high and 36" wide x 96" long x 43" high. The trailer mighty mover has a tire size of 9-1/2" x 18".
Capacities: The trailer mover is available with maximum pull weights of 5,000, 12,000 or 40,000 lbs. The models have various tongue-weight load from lifts: 700, 1,000 or 3,000 lbs.
Electrical: The unit's standard marine-style battery has a 210 minimum @ 25 amp draw. The battery features a 7-hour charge and holds 25 to 30 amps when fully loaded and 8 to 10 amps when empty. The power move master has a built-in battery charger for rapid recovery.
Powered: The power trailer mover model BPMM-700 features a 1/2-Hp, intermittent duty and the model BPMM-1000, BPMM-3000 or BPMM-3000-15 features a 2-Hp, continuous duty DC motor that enables quiet, smooth operation.
Power: The BPMM-1000 and BPMM-3000 models have a maximum speed of 1.6 mph and approximately 1,000 lbs. for the speed/torque package.
Options: A variety of hitch attachments are available, along with other options. Call Beacon for details.
Weight: The power trailer mover is available in a variety of weights ranging from 385 to 2,150 lbs.
Note: When 2 units are being used to push and pull the payload, the operators must work together and raise the lift to add traction, this will reduce tire spin on a smooth surface.
Usage: It is the customer�s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
