Product: Pallet lifter

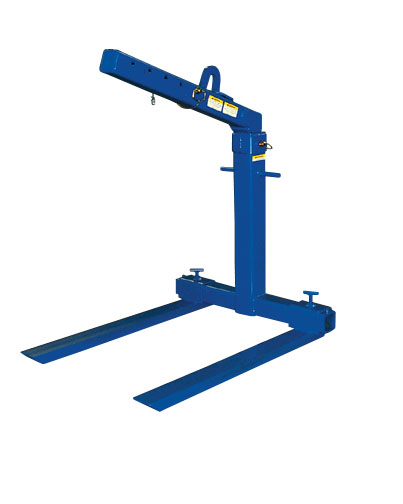

Beacon Model: Beacon BOLA and BOLF series pallet lifter.
Description: Beacon pallet lifter models are designed for lifting and transporting pallets, skids and crates with an overhead lifting device. This load lifter hoist includes an adjustable bail to ensure that the load remains level when being moved. The pallet lifter includes 3 height positions for use with loads of different sizes. The BOLA series portable load lifter has adjustable-width forks. The BOLF series has fixed-width forks.
Construction: The pallet lifter hoist features welded steel construction.
Size: Each portable pallet lifter features a fork size of 4" wide x 42" long x 2" high. Each unit has an opening height of 40-3/4", 52-1/2", 64-1/2" and a usable load height of 51", 62-3/4", 74-1/2". The usable fork length on all load lifter models is 42".
Capacity: The pallet lifter models have a capacity of either 2,000 or 4,000 lbs.
Weight: The pallet lifter hoist models come in weights of 583, 665, 552 or 631 lbs.
Usage: It is the customer�s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.

Prices may increase due to steel surcharge.
