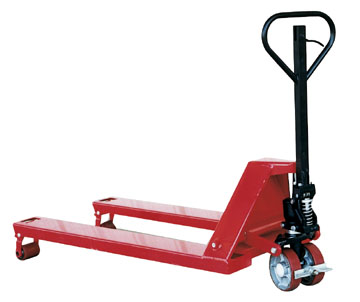

Product: Handling pallet trucks
Beacon Model: Beacon BPM5-2038-WN and BPM5-2738-WN series handling pallet trucks.
Description: The Beacon handling pallet trucks are designed to position skids or pallets close together, enabling truck and floor space to be optimized. The handling pallet trucks feature a 3-position lever designed to ease maneuvering. The fork end of the high lift pallet truck is set back from the front, allowing 1 pallet to be picked up at a time. Handling pallet trucks include 2 front load rollers and 2 articulating steering wheels. The unit includes a spring-loaded handle that automatically moves back to the vertical position when not being used.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Size: The handling pallet truck models have an overall fork size of 20" wide x 38" long or 27" wide x 38" long.
Service Range: The handling pallet trucks have a service range of 3-1/2" to 8".
Capacity: The pallet truck has a capacity of 5,000 lbs.
Weight: The handling pallet truck models weigh 260 or 280 lbs.
Note: An emergency stop button kit and web lanyard with safety harness is included.

Complementary Products: For long-life, highly efficient pallets, please see Beacon plastic pallets.
