Product: Hydraulic Upender
Beacon Model: Beacon BHUE series hydraulic upender.
Models: Pricing below for the hydraulic upender is only for the minumum platform width and length. Additional charge will apply for a larger platform size above minimum platform standard pricing and will be quoted individually by Beacon to the customer.

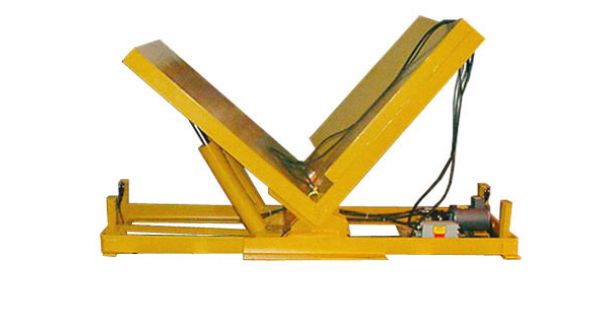

Description: The Beacon hydraulic upender upends and tilts work materials to an ergonomically correct position for the worker. The hydraulic upender features limit switches and mechanical stops in both directions. This tilter has double-acting hydraulic cylinders and smooth steel tops with 3-3/4" straight safety toe guards with safety stripes.
The unit features hard, chrome-plated, polished shafting, hydraulic cylinder rods and axles. The upender also has double acting hydraulic cylinders and lifetime self-lubricating, anti-friction bearings at all pivot points.
Construction: Hydraulic Upender features heavy-duty steel construction.
Size: The upenders are available in a variety of platform sizes ranging from 24" wide x 36" long to 48" wide x 72" long. The chart below identifies the platform minumum and maxium standard sizes.
Service Range: The upenders tilt up to 90 degrees.
Capacity: The standard hydraulic upenders are available with capacities ranging from 2,000 to 10,000 lbs. Special hydraulic upenders are available with capacities above 10,000 lbs. The special heavy capacity units greater than 10,000 lbs will include redesign and engineering time, heavier capacity hydraulic cylinders, thicker deck, redefined substructure and clevises points.
Electrical: The unit is powered by an internally mounted 1-1/2 Hp 230 V, 1 Ph, 60 Hz or 208/230/460 V, 3 Ph, 60 Hz intermittent duty TENV super torque motor or 3 Hp 208/230/460 V, 3 Ph, 60 Hz continuous duty TENV motor. Please specify required voltage when ordering.
Options: Available options include a key operated up/down selector, electric toe guards, conveyor tops, ball transfer tops and remote power units with 5' hydraulic hose.
Note: The upenders can be mounted on scissor lifts or used as free-standing units.
Warranty: To Keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity.
All Hydraulic Tilt Tables are quoted the capacity within its deck size.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
