Product: Portable Tilt Table

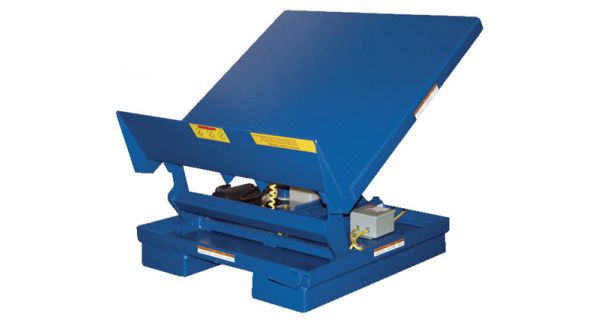

Beacon Model: Beacon BUNI-P 4848-4 and 5448-4 series Portable Tilt Table
Description: The Portable Tilt Table enables workers to decrease the risk of injury and increase lifting efficiency, reducing potential harm to workers and items.
Construction: Move the Portable Tilt Table as needed with a fork truck to areas and lift up to 4,000 lbs. Fork truck by others.
Operation: The unit is supplied with a selector pedal allowing the user of the portable tilt table to lift while tilting or to tilt and then lift. Pendant hand control is also standard.
Size: Platform size is 48" Wide x 48" Long or 54" Wide x 48" Long.
Service Range: Maximum tilt is 40 degrees. Table has a 12" lip on the tilting side.
Capacity: Features a 4,000 lb. Capacity at the work area.
Electrical: 460 VAC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
Powered: Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
Standard: All standared featurs on the portable tilt table are the same as available on the Beacon single scissor lift and tilt table.
Options: Air bag uni-tilt available. Three sided accordian available, Please contact Beacon for more information.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
