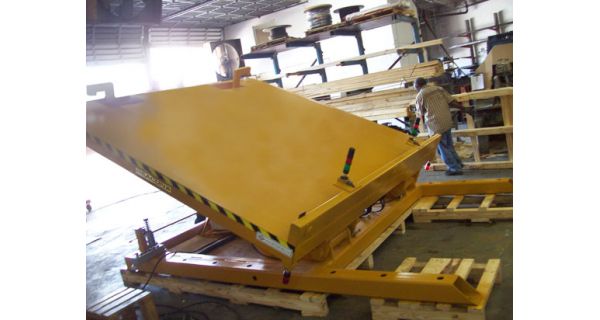

Product: Hydraulic tilt table
Beacon Model: BHTT series hydraulic tilt table
Description: Hydraulic Tilt Tables are heavy duty in design. With deck sizes up to 120" x 120". Degree of tilt from 45 to 90 degrees. Capacities up to 6,000 lbs. The hydraulic tilt table is electric hydraulic powered by a motor pump reservoir. The unit has an adjustable limit switch to control the tilt angle. Internal high pressure gear pump with check valve, relief valve, pressure compensated flow control valve, solenoid valve, suction and return filters make the hydraulic tilt table an efficient ergonomic tilting work station piece of equipment.
Construction: Heavy duty steel welded construction. Lifetime self-lubricating, anti friction bearings at all pivot points. Smooth steel top deck surfaces. Anchor grab claws or chains provided, please specify when ordering.
Operation: The hydraulics of the hydraulic tilt table include single acting hydraulic cylinders with internal stops to 45 degree. The hydraulic tilt table that will tilt from 45 to 90 degrees will include double acting hydraulic cylinders.
Electrical: 460 VAC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
Powered: Internally mounted self contained horse power units ranging from 3/4 Hp to 1-1/2 Hp depending on the size of hydraulic tilt table. Optional Air (Rotary Air/Oil or Reciprocating Air/Oil) is available at an additional charge.
Standard: Straight safety toeguards with black and yellow safety stripes on toeguards.
Options: Remote power unit, Wall mounted control station, Key operated, Foot control, Up limit switch, Electric toe guards, Beveled toe guards and Accordion bellow skirting.
Installation: Base frame of the unit must be anchored to the floor.
Color: Structural surfaces of the hydraulic tilt table are degreased, oxide primed and finished with two coats of yellow enamel.
Warranty: To Keep warranty valid you cannot cantilever the geometric ratio weight beyond the center of gravity.
All Hydraulic Tilt Tables are quoted the capacity within its deck size.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
