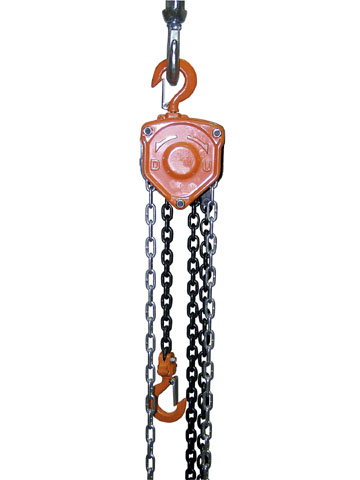

Chain Hoist

Product: This chain hoist is a pull chain for lifting items weighing up to 4,000 lbs.
Beacon Model: Beacon BHCH series manual chain hoist
Description: Beacon manual chain hoist is portable, lightweight and durable. Their compact design and low headroom allow installation in confined areas. Manual chain hoists are tested at 150 percent rated capacity and meet ANSI B30.16-2003 requirements. The chain hoist features grade 80 black chain tempered to ISO 3077, galvanized pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches.
Construction: The manual chain hoist is constructed of high-quality steel.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Size: Manual chain hoist models are available with lifts of 10', 15' or 20'.
Capacity: The chain hoists come in capacities of 1,000, 2,000 and 4,000 lbs.
Standard: The units come standard with double ratchet pawls with self-adjusting disc brake.
Weight: The chain hoist models weigh from 22 to 63 lbs.
Warranty: The chain hoists have a one-year warranty.
