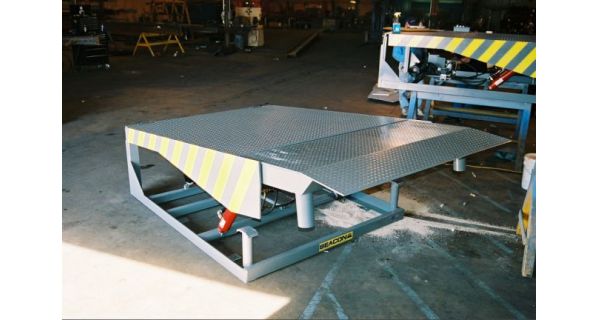

Product: Hydraulic dock levelers
Beacon Model: Beacon HPK series Hydraulic Dock Levelers and Loading Ramps
Description: The Beacon push button controlled hydraulic dock levelers are designed to accommodate loading docks with high volumes of traffic. HPK dock levelers service cargo-carrying trucks.
Construction: The 20,000 lb capacity HPK Hydraulic Dock Levelers utilizes box formed steel for the substructure and the The 30,000 lb + capacity HPK Hydraulic Dock Levelers utilizes I Beams steel for the substructure.
Operation: Two hydraulic cylinders control the hydraulic dock leveler's deck movement, and a hydraulic cylinder controls the slide deck lip.
Size: The dock leveler models feature deck widths of 6' or 7'. The units have actual lengths of 6', 8', 10', 12 & 14''.
Capacity: The hydraulic dock leveler features a 20,000-lb.or a 30,000 lb dynamic rollover capacity.
Electrical: 3 Hp motor, 208/240/440 Vac., 3 phase.
Standard: Included is a 20" or 24" continuous slide deck lip, full-range toe guards and dock bumpers.
Warranty: Five years structural, three years hydraulics and one year electrical.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
