Product: Loading dock lift
Beacon Model: Beacon BSLD series loading dock lift

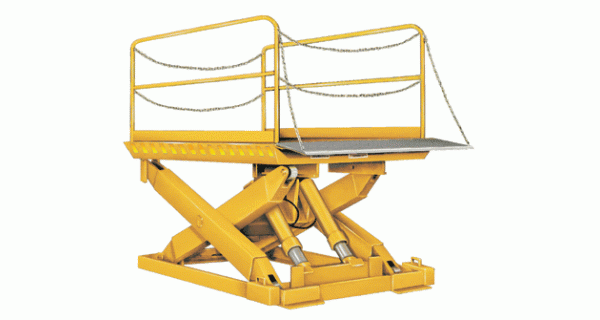

Description: The Beacon heavy capacity scissor loading dock lift is ideal for lifting heavy objects. This hydraulic loading dock lift has a safety tread steel plate platform with 8" beveled toe guards and yellow and black safety strips. This scissor dock loading leveler features 2 removable steel handrails, positive stops on all 4 corners and hinged safety restraint maintenance bars. The hydraulic lift also features a safety velocity fuse at the base of each cylinder. The unit also has 4 safety chains with snap hooks.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Size: The scissor dock loading lift models have a variety of platform sizes ranging from 72" x 120" to 96" x 144". The base frames are either 63" x 112" or 88" x 112".
Service Range: The hydraulic loading dock lift models have lowered heights ranging from 16" to 24" and raised heights ranging from 76" to 84".
Capacity: The scissor dock loading lift is available in a variety of capacities ranging from 15,000 to 30,000 lbs.
Installation: Surface or pit mount will end up with different overall heights. The three vertical geometric propeties to be aware of is the (1) Lowered height (2) Travel (3) Overall height. When mounting in a pit, your travel will end up as your overall height.
Weight: The models come in shipping weights ranging from 6,450 to 11,250 lbs.
Note: Payment Terms: This product is special and requires a 20% deposit at time of order, 20% prior to shipment and balance net 30 with approved credit.
|
|
|
|
|
|
|
