Product: Hydraulic Dock Levelers

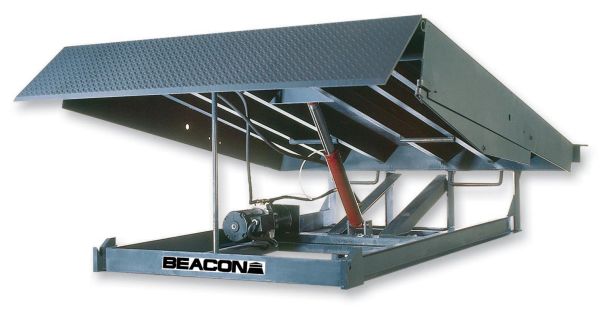

Beacon Model: Beacon BH2 series hydraulic dock levelers
Description: The Beacon push button controlled hydraulic dock levelers compensate for uneven heights between the truck bed and the loading dock. This BH2 series hydraulic dock leveler is ergonomically designed.
Construction: This type of BH2 series hydraulic dock levelers features heavy duty structural steel construction.
Operation: The hydraulic cylinder controls the deck movement, and a hydraulic cylinder controls the hinged lip for the dock leveler. The unit features push button return to dock operation.
Size: The hydraulic dock levelers are 6', 6.5' or 7' wide. Nominal available lengths are 6' or 8'.
Capacities: Hydraulic dock levelers feature service capacities ranging from 25,000 to 45,000 lbs.
Electrical: The hydraulic dock levelers have a 1 Hp motor, 1 Ph. 115 Vac, 60 Hz as standard equipment. Optional 1 Ph. 230 Vac, 60 Hz and 3 Ph. 230 Vac or 460 Vac is available at an optional up-charge.
Standard: This BH2 series hydraulic dock levelers comes standard with a 16" hinged lip, full-range toe guards and dock bumpers.
Note: Special warranty note: Beacon will match any other company's warranty on this model. Just present valid said warranty to Beacon for written approval.
Warranty: Two-year structural and cylinders and one-year pump and motor.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
