Product: Hydraulic Dock Leveler

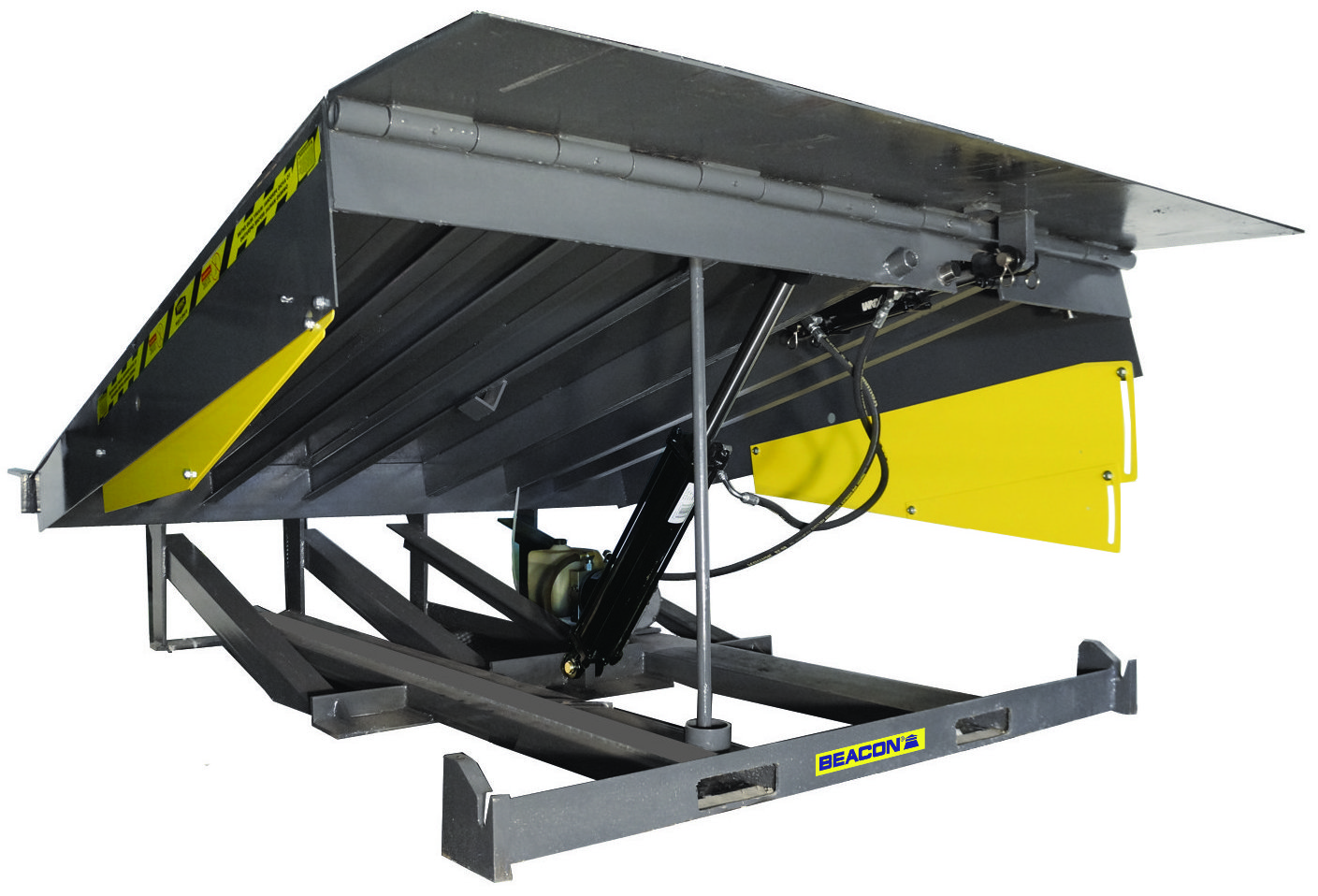

Beacon Model: Beacon BH5 series hydraulic dock leveler
Description: This hydraulic dock leveler with automatic return to dock feature compensates for uneven heights between the truck bed and the loading dock. The hydraulic dock leveler automatically returns to the loading dock with auto recycle.
Construction: These hydraulic dock leveler features heavy-duty welded structural steel construction.
Operation: The hydraulic cylinder controls the deck and lip movement. Auto recycle into stored position is standard after truck departs.
Size: This BH5 series hydraulic dock leveler has 6', 6.5' or 7' deck widths. The units feature 6', 8' or 10' nominal lengths. Special hydraulic dock leveler sizes are available.
Capacities: This BH5 series hydraulic dock leveler feature service capacities of 25,000, 30,000, 35,000 or 40,000 lbs. Special capacities are available upon request.
Electrical: These hydrauloic dock leveler feature a 1 Hp motor, 230 Vac or 460 Vac, 3 phase, 60 Hz as standard or 115 Vac or 230 Vac as a upcharge option.
Standard: These units come standard with a 16" hinged lip, full-range toe guards and dock bumpers.
Warranty: Five-year structural and cylinders and one year pump and motor.
Usage: It is the customer’s responsibility to verify correctness of fit for applications. It is the customer's responsibility to verify that this unit complies with all safety laws, codes and regulations.
Prices may increase due to steel surcharge.
